Five original Keck & Keck drawing sheets survive — drawn April–May 1951, checked by the Keck office. Scroll to develop each sheet. Click to enlarge.

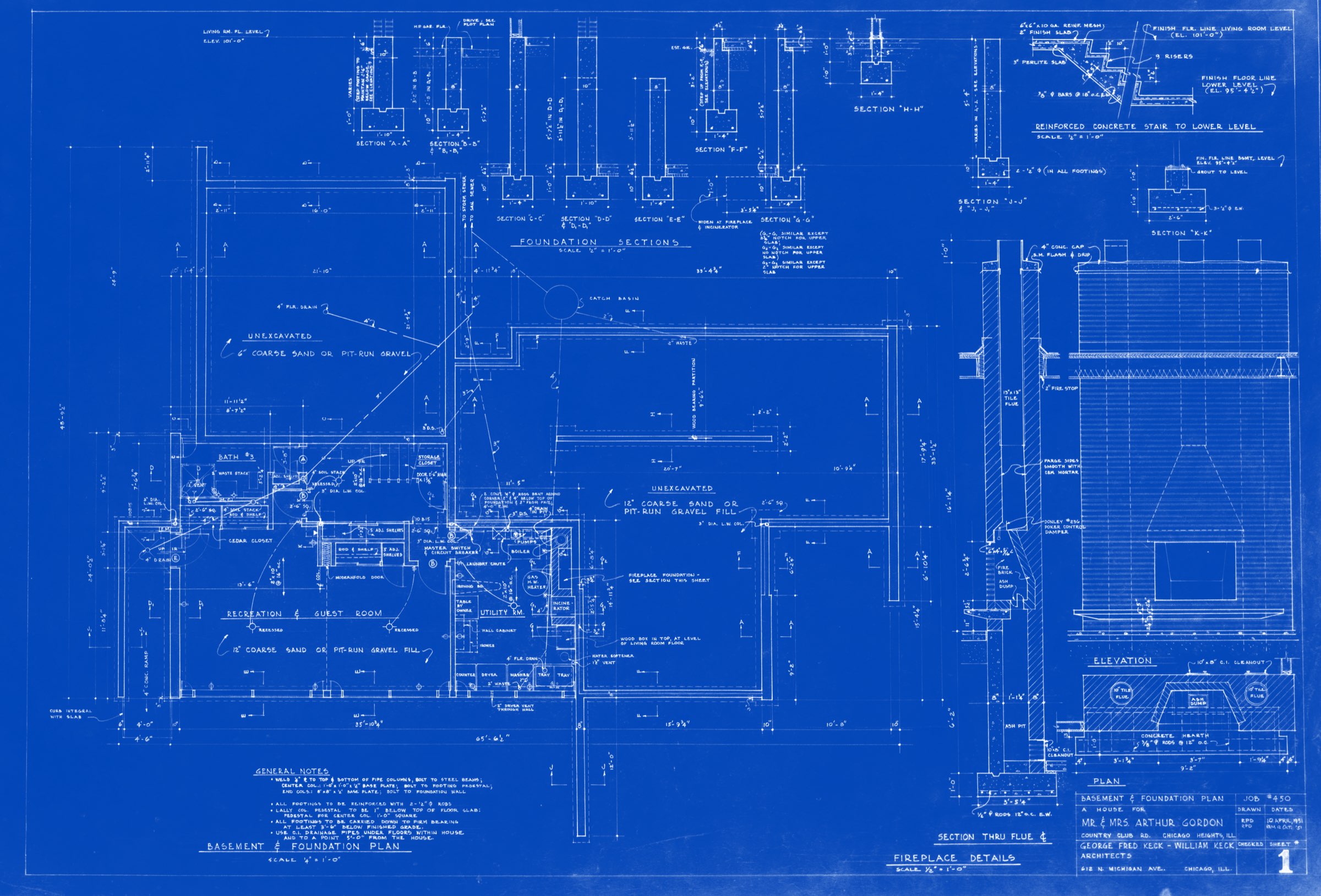

Basement & Foundation Plan

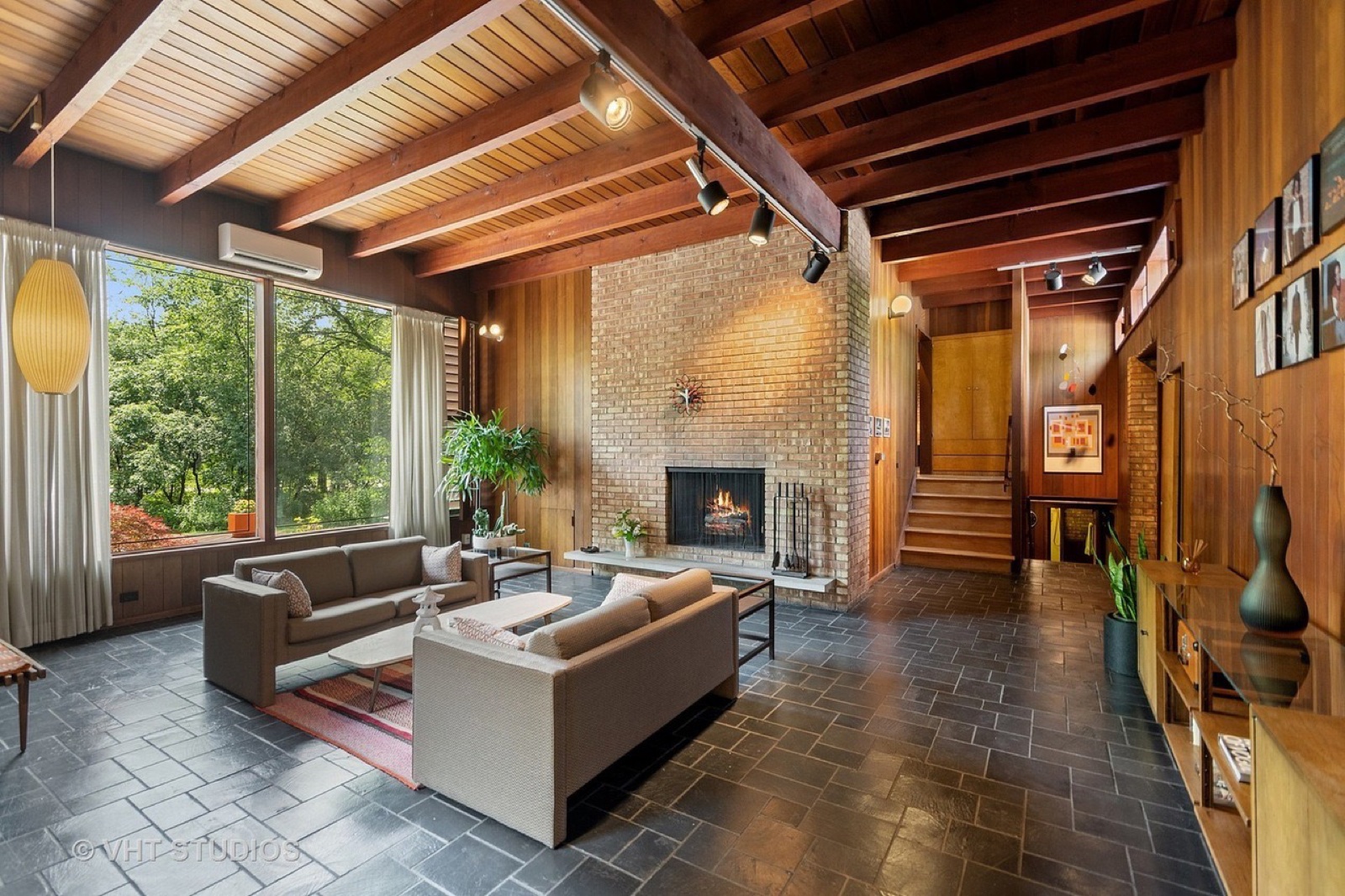

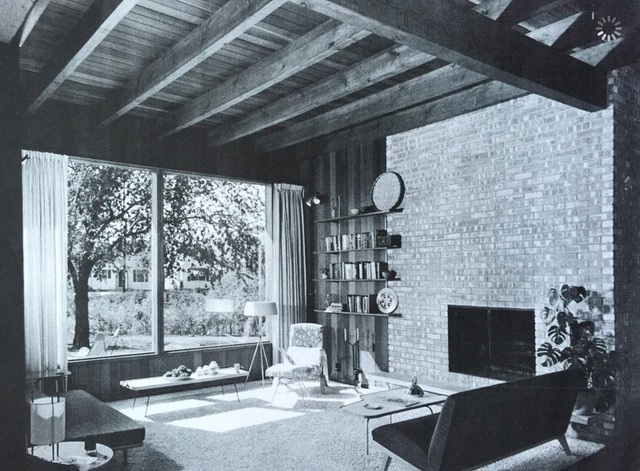

Fireplace Details
Foundation sections A-A through K-K, reinforced concrete stair to lower level, Recreation & Guest Room, Utility Room, and the fireplace rendered in full elevation, plan, and section — tile flue, ash dump, fire door, damper, and 4″ concrete cap all specified.

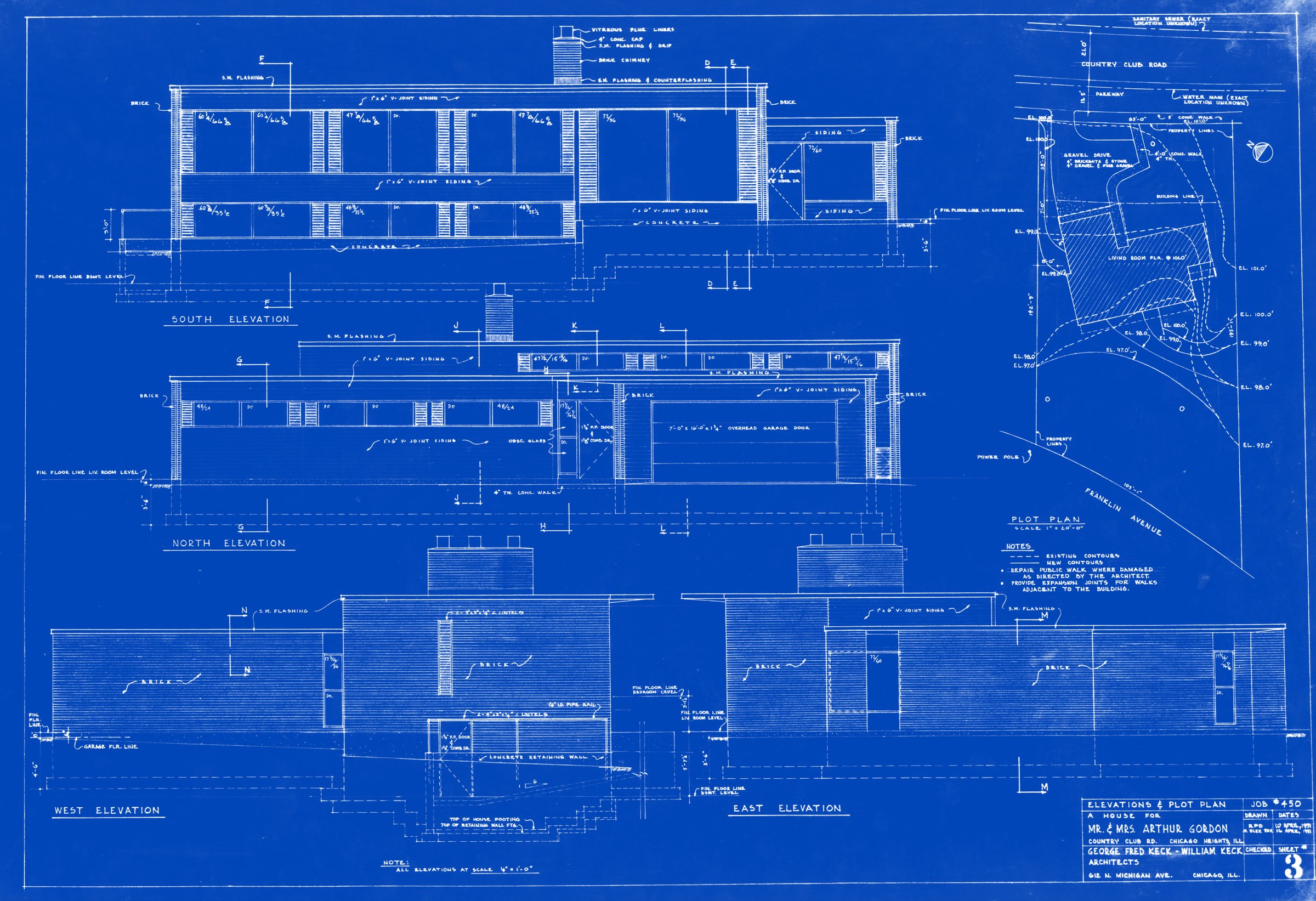

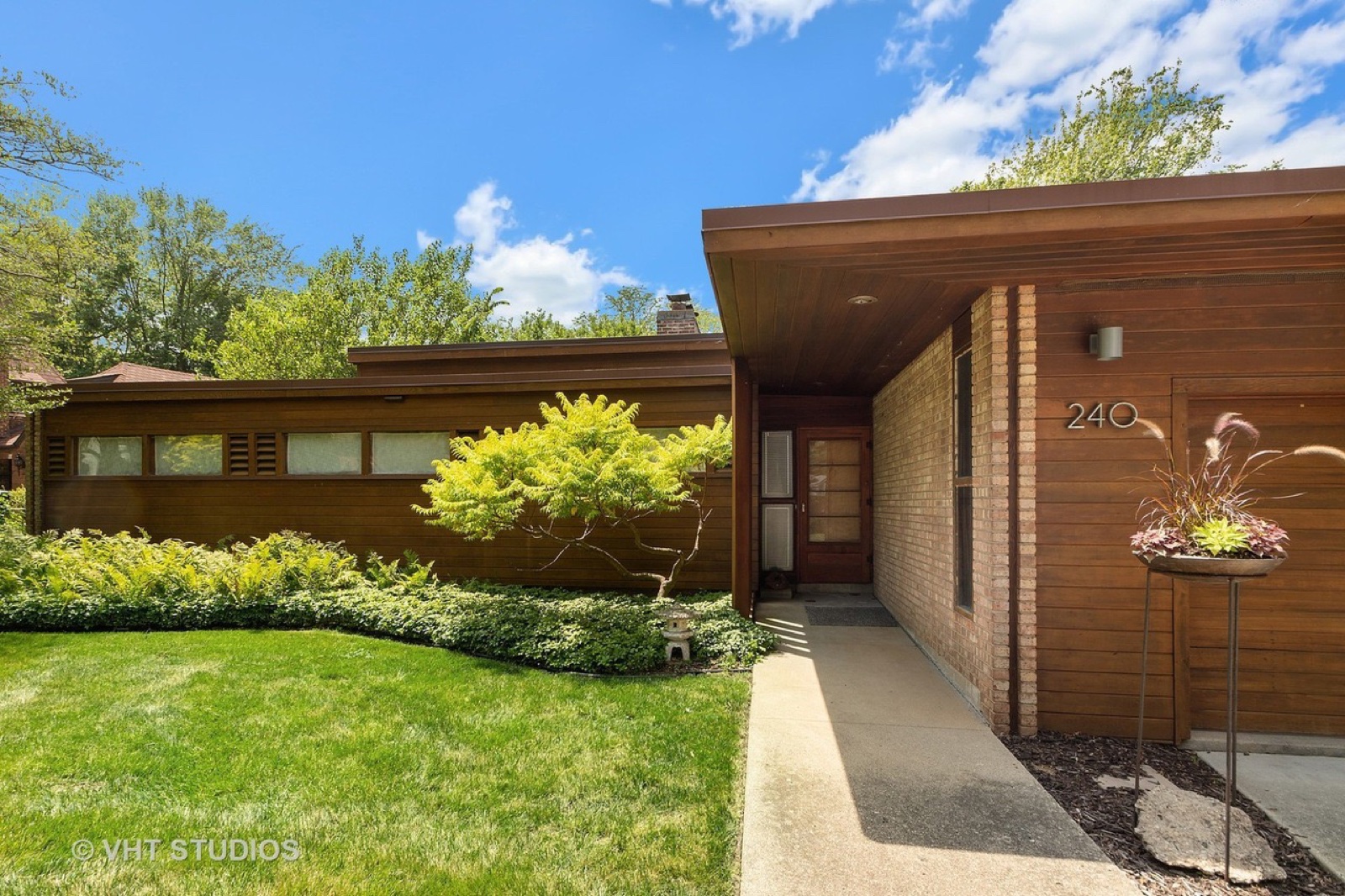

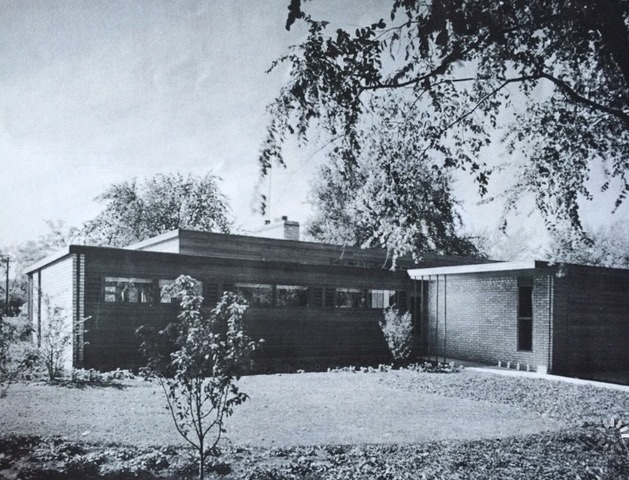

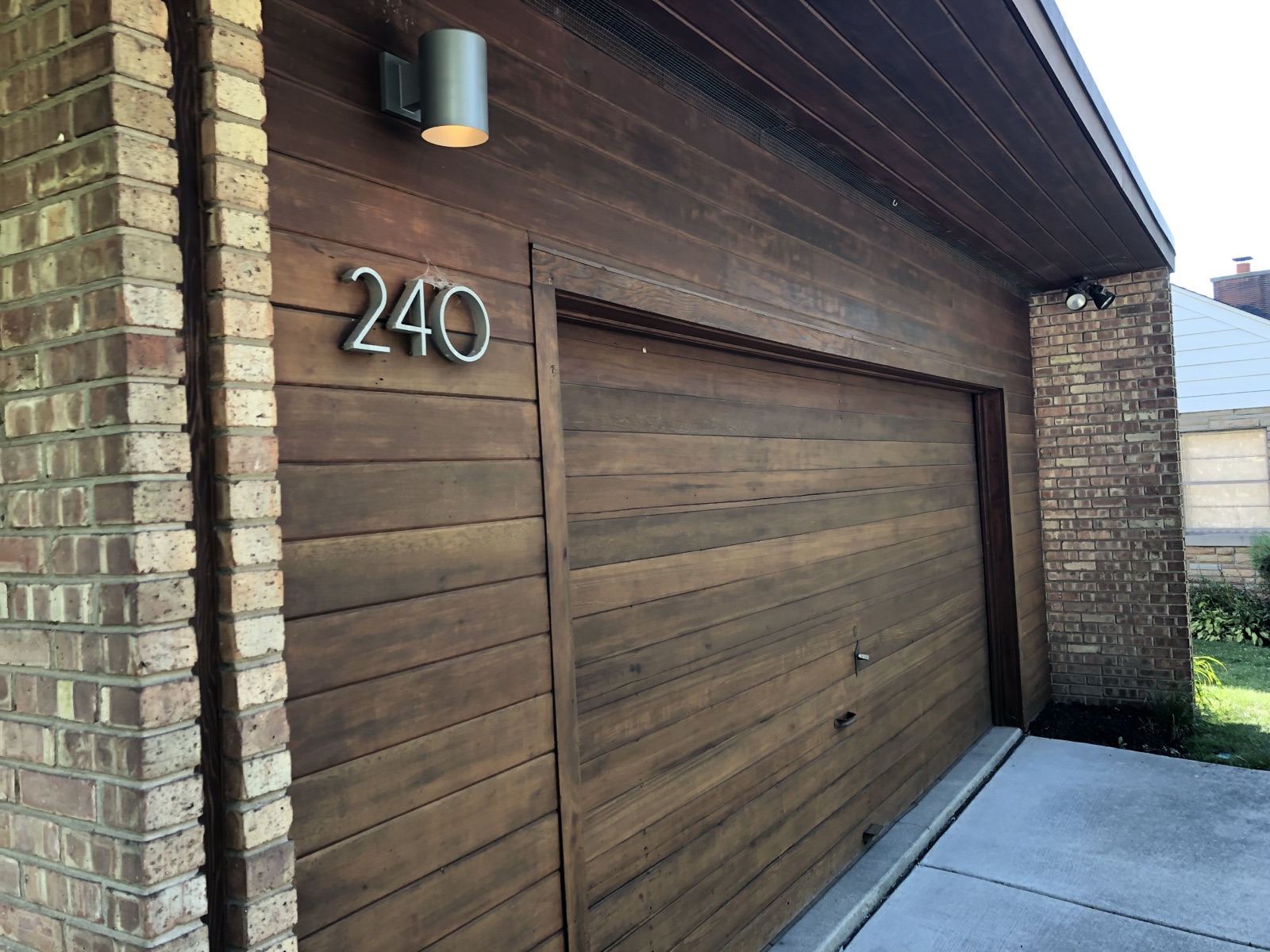

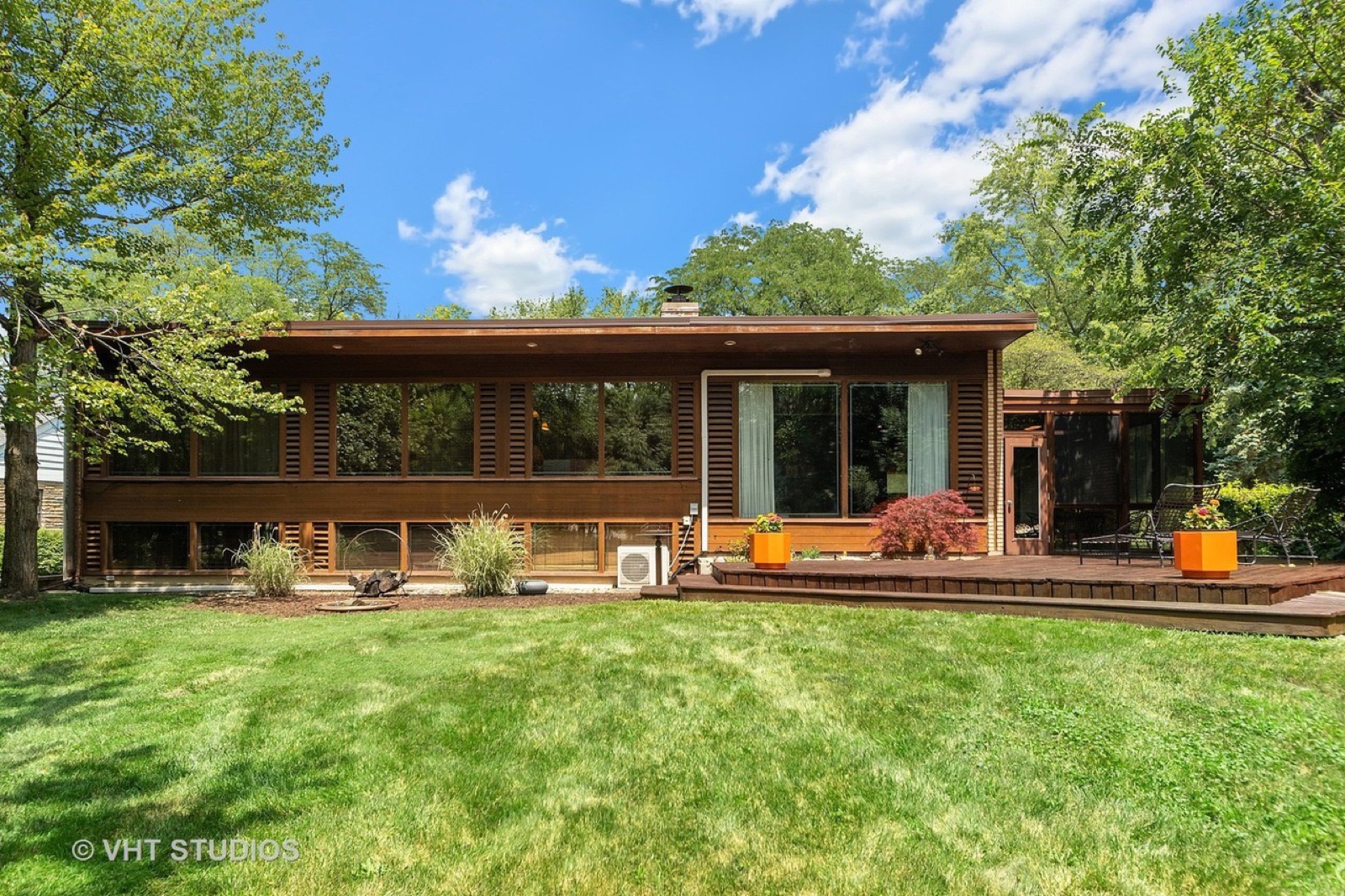

Elevations & Plot Plan
All four elevations (N/S/E/W) plus the site plan at 1″=10′-0″. Shows the corner lot at Country Club Road and Franklin Avenue — gravel drive entry, property lines, power pole, and the precise positioning of the building on grade. Every material zone, flashing, and siding profile annotated.

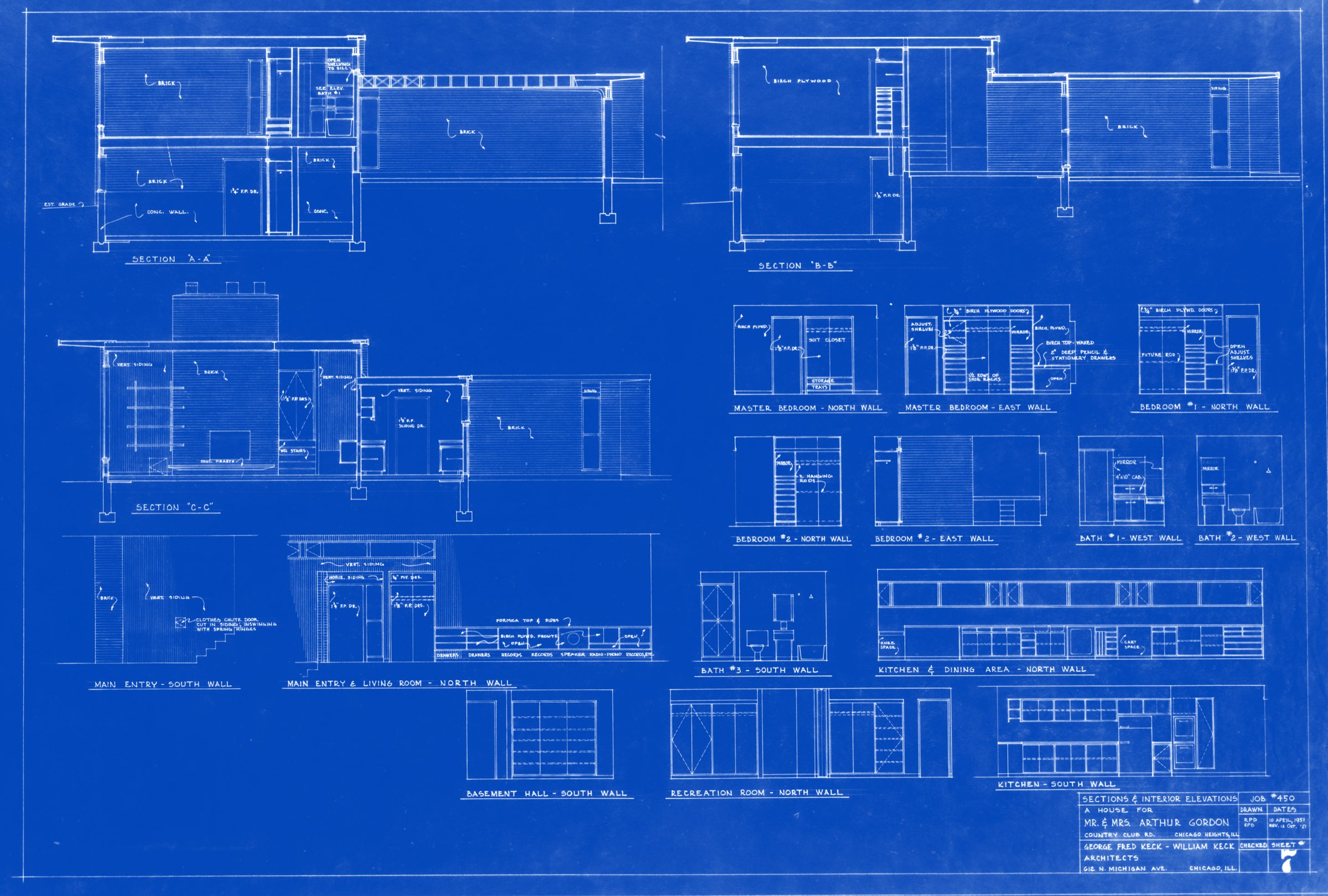

Sections & Interior Elevations
Three building cross-sections plus interior elevations of every room: Master Bedroom north and east walls, Bedrooms #1 and #2, all three Bathrooms, Main Entry, the Living Room north wall built-in cabinet, Kitchen & Dining north and south walls, Basement Hall, and Recreation Room.
Suggested Revisions:

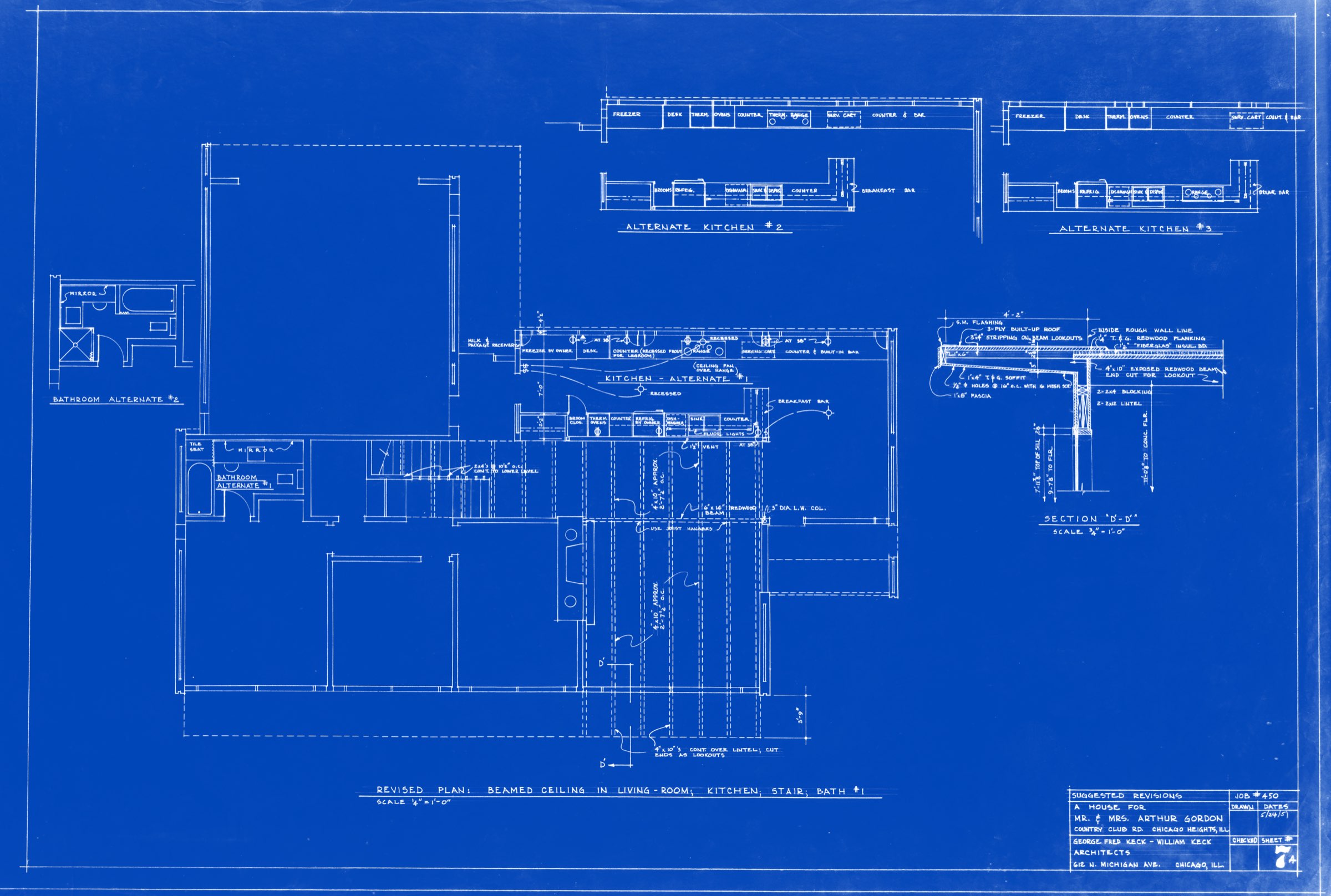

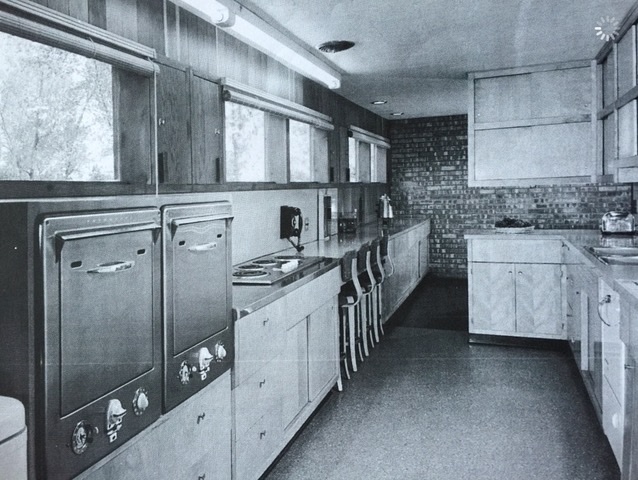

Beamed Ceiling · Alternate Kitchens
Three alternate kitchen configurations, two bathroom alternates, revised beamed ceiling plan, and Section D-D (scale ¾″=1′-0″) detailing the exact roof construction: 3-ply built-up roof, 4×10 exposed redwood beams, ¼″ T&G redwood planking, 2×6 fascia, and beam lookout profile.
Floor Plan &
Clerestory Plan

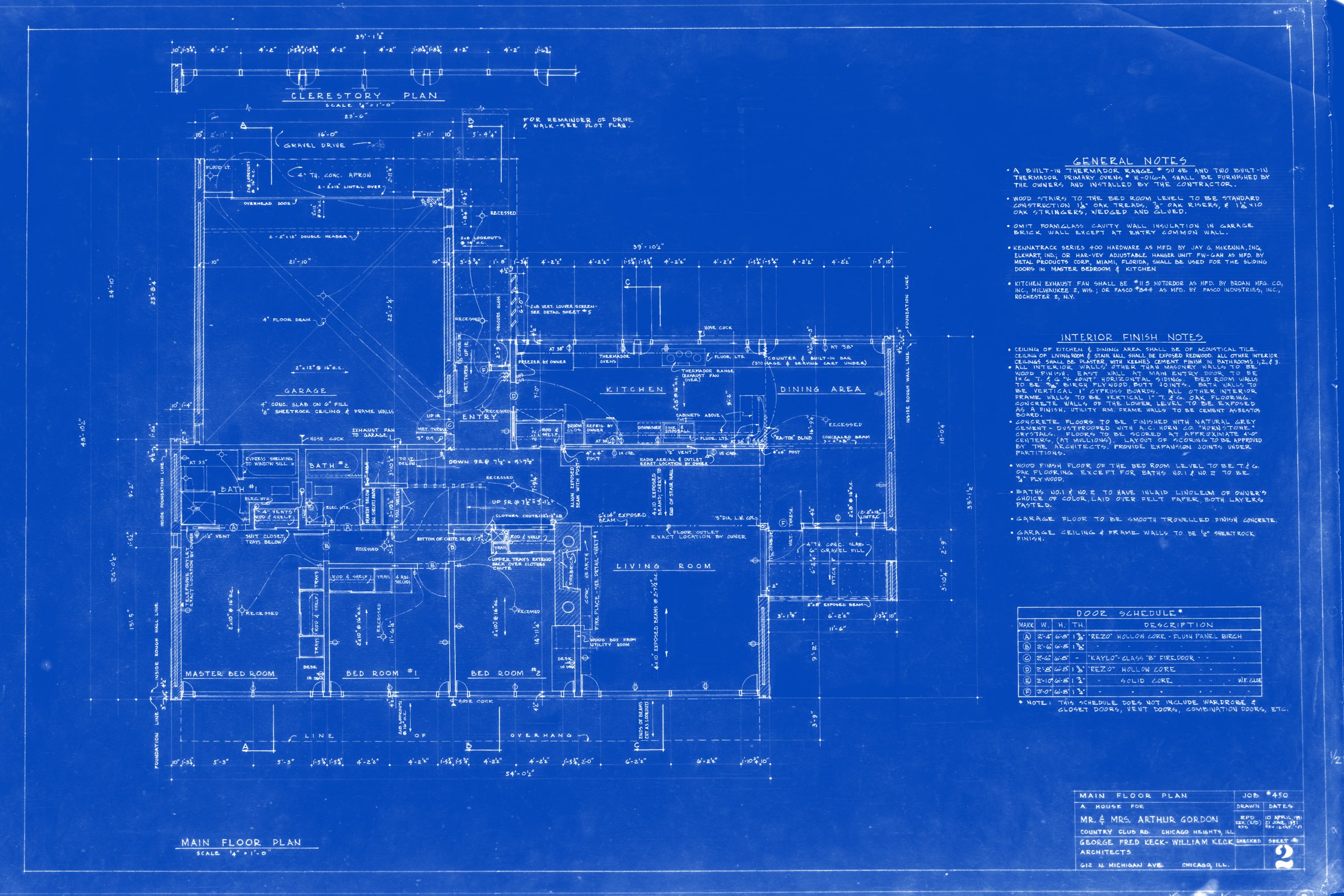

The complete main floor layout — Living Room, Dining, Kitchen, three Bedrooms, all Bathrooms, and the separately drawn Clerestory Plan that pulls diffuse northern light deep into the interior. Every room dimension, wall thickness, door swing, and window position as Keck drew them in 1951.
